Is it possible to set important schedules (construction start date, delivery date, etc.) that cannot be moved?

Modified on Thu, 25 May, 2023 at 3:05 PM

Yes, it is possible.

  • For important schedule which cannot be changed, you can create a Bar in the Milestone Area at the top of the bar chart to fix and display it as “Milestone”.
  • If you want to fix a specific activity, set “Be Fixed” in “Time Analysis Settings” of Bar Property.



Fixed date is displayed with "¤" mark which can be used as an indicator for process management.

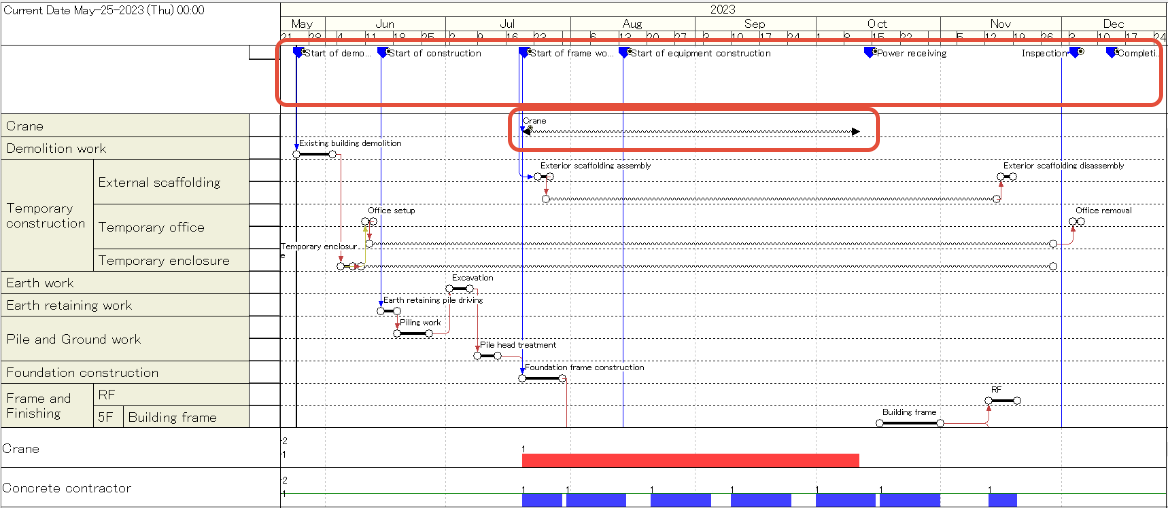

[Fixed display of important schedule]




What is Milestone?
It is a management point for a Project which set to the particularly important date such as delivery or deadline.
By dragging the mouse in Milestone Area, you can create a Milestone Bar.

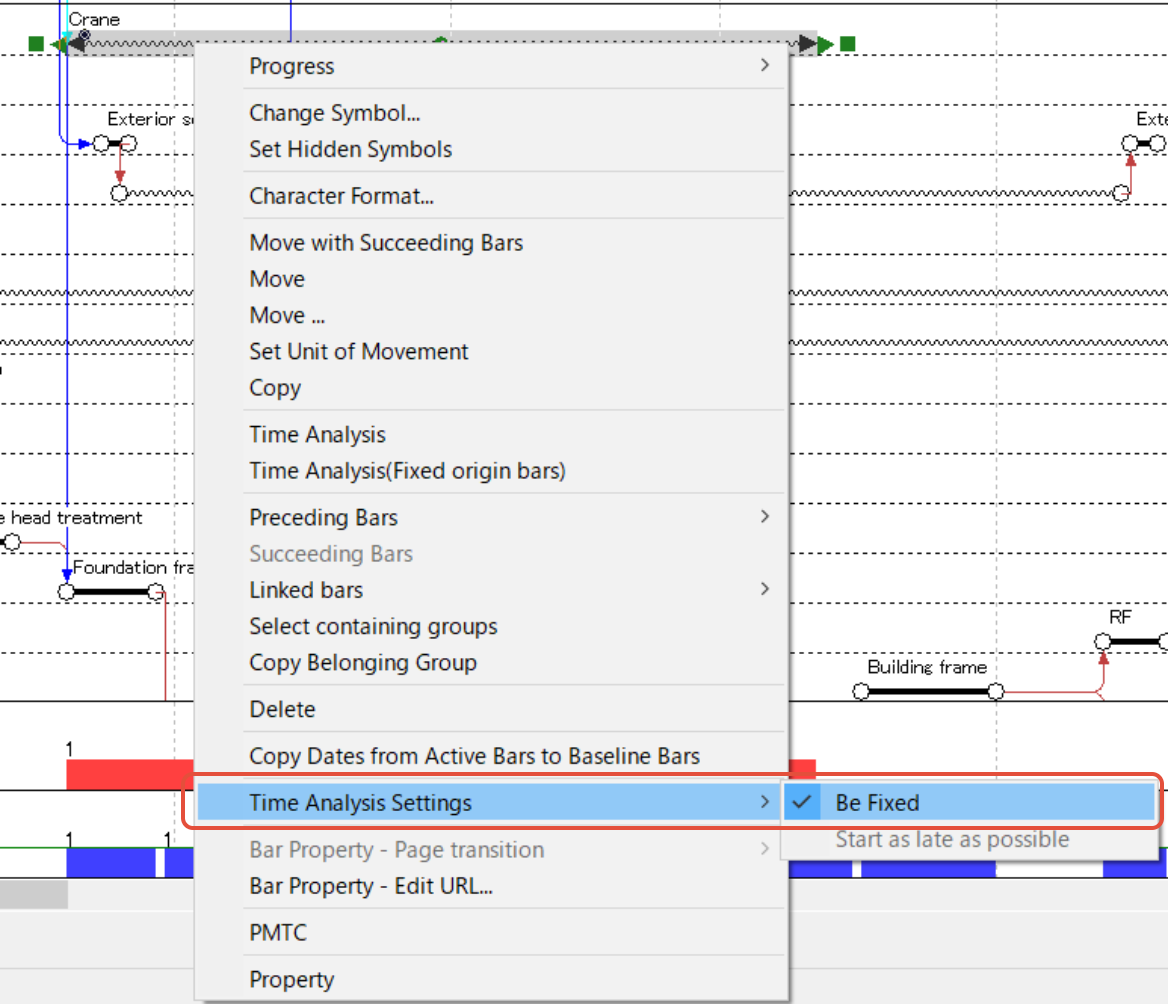

[Fix a Bar by setting it to not move]






C_KTZ_PMG_4_2205_00048_00
